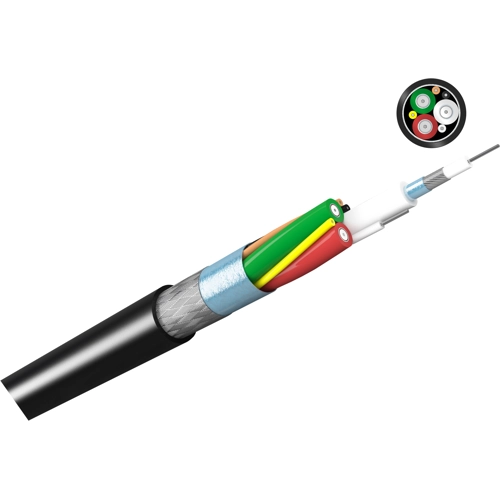

PVC hybrid cable KK 3/4-Mini 7 x 3 x 0.09 mm² + 4 x 0.20 mm², shielded, black, 843750420
Unit Price (€ / mtr.)
9.5557 € *
Available: 50 mtr.
Available in 7 Days: 4,990 mtr. - if ordered today
Total Price:
9.56 € *
Price list
Quantity
Price per unit*
1 mtr.
9.5557 €
10 mtr.
8.8417 €
50 mtr.
8.1277 €
100 mtr.
7.6517 €
*incl. VAT plus shipping costs
Subject to prior sale
Combination cable, 843750420, Kabeltronik
Combination cable for the transmission of RGB signals and control instructions. This cable has maximum protection against interferences due to the double total screen and the double screen fo the video elements.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | hybrid cable | |
| Number of cores | 7 | |
| Cable cross-section | 3 x 0.09 mm² + 4 x 0.20 mm² | |
| Colour | black | |
| Material | PVC | |
| Outer diameter | 9 mm | |
| Shielding | shielded | |
| Halogen free | No | |
| Cable material | copper, tin-plated | |
| Core insulation material | PVC/PE | |
| Temperature range (unmoved) | -30 °C to 70 °C | |
| Temperature range (active) | -5 °C to 70 °C |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Ring with 50 meters |
| Customs tariff number | 85442000 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
