841753100 | Kabeltronik

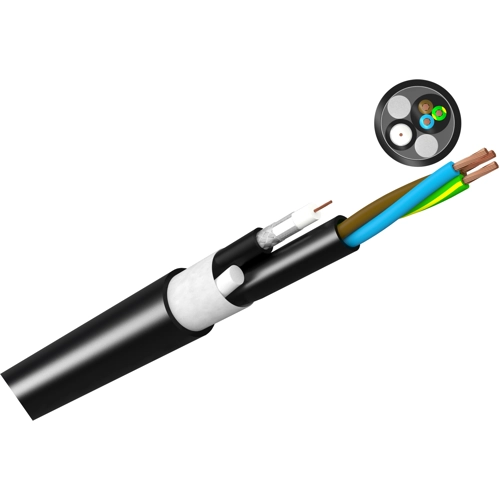

PVC hybrid cable KVN 1/1 4 x 1 x 0.22 mm² + 3 x 1.0 mm², shielded, black, 841753100
Unit Price (€ / mtr.)
6.426 € *
Available in 7 Days: 1,957 mtr. - if ordered today
Combination cable, 841753100, Kabeltronik
Very flexible combination cable for use for image transmission and power supply, e.g. surveillance monitors. The mains cable is separately sheathed and designed for plug installation without additional effort. Due to its design, the cable can also be used for mobile applications or reel operation.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of cores | 4 | |
| Halogen free | No | |
| Core insulation material | polypropylene/TPE | |
| Cable material | copper, bright | |
| Colour | black | |
| Product type | hybrid cable | |
| Outer diameter | 12.5 mm | |
| Cable cross-section | 1 x 0.22 mm² + 3 x 1.0 mm² | |
| Temperature range (active) | -15 °C to 70 °C | |
| Temperature range (unmoved) | -25 °C to 70 °C | |
| Shielding | shielded | |
| Material | PVC |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85442000 |
| Original Packaging | Ring with 50 meters |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
