424P51105 | Kabeltronik

PUR LED cable LEDotronic-PUR 5 x 0.5/1.0 mm², unshielded, light gray, 424P51105

Order No.: 92F5017
EAN: 4099891961138
MPN:
424P51105
Series: LEDotronic-PUR
424P51105 Kabeltronik Control Cables

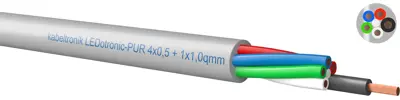

Image may differ
Unit Price (€ / mtr.)
3.1059 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
310.59 € *
*incl. VAT plus shipping costs
Subject to prior sale
100 mtr.
3.1059 €

LED cable, 424P51105, Kabeltronik

High flexible LED-supply line with 3 resp. 4 cores RGB(W) in the corresponding colours and a common return with a cross section of 1,0 mm² in colour black. The colour coding prohibit any mistakes at the installation. This cable will be produced with PUR-jacket, so it is prefered for outdoor-using.

Technical specifications
Filter Property Value
Cable material copper, bright
Test voltage 2.5 kV
Core insulation material PVC
Material PUR
Version LED line
Temperature range (unmoved) -40 °C to 80 °C
Temperature range (active) -20 °C to 80 °C
Outer diameter 5.9 mm
Colour light gray
Number of cores 5
Rated voltage 500 V
Shielding unshielded
Cable cross-section 0.5/1.0 mm²
Logistics
Property Value
Country of origin DE
Original Packaging Ring with 100 meters
Customs tariff number 85444995
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
