420801405 | Kabeltronik

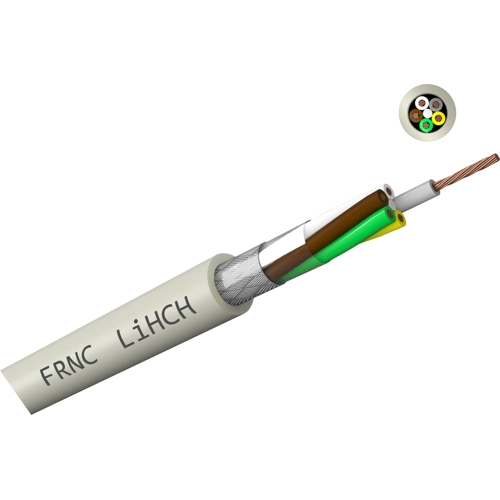

FRNC control line KATRONIC-C LiHCH 8 x 0.14 mm², shielded, gray, 420801405
Unit Price (€ / mtr.)
3.9389 € *
Standard delivery time from the manufacturer is: On Request
Control cable, 420801405, Kabeltronik
Flexible Control cable FRNC for measuring, control and regulation technology as well as data processing, where the use of halogen free and flame retardant materials is mandatory. A copper braid shield enhances interference-free transmission and additional mechanical protection.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Core insulation material | FRNC | |
| Test voltage | 800 V | |
| Colour | gray | |
| Halogen free | Yes | |
| Number of cores | 8 | |
| Shielding | shielded | |
| Outer diameter | 5.6 mm | |
| Temperature range (unmoved) | -40 °C to 90 °C | |
| Material | FRNC | |
| Rated voltage | 350 V | |
| Core colour sequence | DIN 47100 | |
| Product type | control line | |
| Cable material | copper, bright | |
| Cable cross-section | 0.14 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
| Original Packaging | Reel with 100 meters |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
