420401405 | Kabeltronik

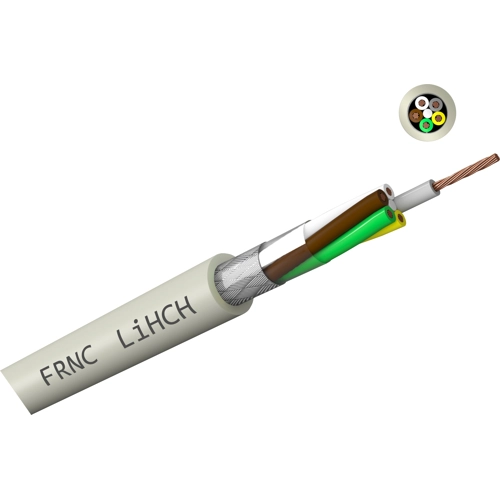

FRNC control line KATRONIC-C LiHCH 4 x 0.14 mm², shielded, gray, 420401405
Unit Price (€ / mtr.)
2.4752 € *
Available in 7 Days: 1,539 mtr. - if ordered today
Control cable, 420401405, Kabeltronik
Flexible Control cable FRNC for measuring, control and regulation technology as well as data processing, where the use of halogen free and flame retardant materials is mandatory. A copper braid shield enhances interference-free transmission and additional mechanical protection.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Core insulation material | FRNC | |
| Shielding | shielded | |
| Cable material | copper, bright | |
| Colour | gray | |
| Cable cross-section | 0.14 mm² | |
| Core colour sequence | DIN 47100 | |
| Material | FRNC | |
| Halogen free | Yes | |
| Rated voltage | 350 V | |
| Test voltage | 800 V | |
| Outer diameter | 4.2 mm | |
| Number of cores | 4 | |
| Product type | control line | |
| Temperature range (unmoved) | -40 °C to 90 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Original Packaging | Reel with 100 meters |
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
