420205005 | Kabeltronik

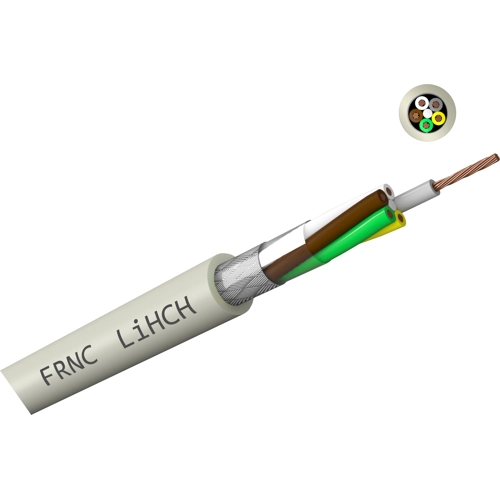

FRNC control line KATRONIC-C LiHCH 2 x 0.5 mm², shielded, gray, 420205005
Unit Price (€ / mtr.)
2.5466 € *
Standard delivery time from the manufacturer is: On Request
Control cable, 420205005, Kabeltronik
Flexible Control cable FRNC for measuring, control and regulation technology as well as data processing, where the use of halogen free and flame retardant materials is mandatory. A copper braid shield enhances interference-free transmission and additional mechanical protection.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Halogen free | Yes | |
| Colour | gray | |
| Test voltage | 1.2 kV | |
| Core colour sequence | DIN 47100 | |
| Cable cross-section | 0.5 mm² | |
| Outer diameter | 5.2 mm | |
| Version | control line | |
| Material | FRNC | |
| Number of cores | 2 | |
| Rated voltage | 500 V | |
| Temperature range (unmoved) | -40 °C to 90 °C | |
| Shielding | shielded | |
| Core insulation material | FRNC | |
| Cable material | copper, bright |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
| Country of origin | DE |
| Original Packaging | Reel with 100 meters |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
