411601405 | Kabeltronik

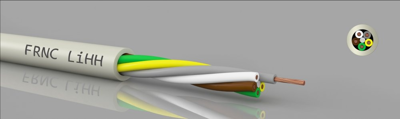

FRNC control line KATRONIC LiHH 16 x 0.14 mm², AWG 26, unshielded, gray, 411601405
Unit Price (€ / mtr.)
4.3435 € *
Available in 7 Days: 1,795 mtr. - if ordered today
Total Price:
434.35 € *
Price list
Quantity
Price per unit*
100 mtr.
4.3435 €
500 mtr.
3.9151 €
*incl. VAT plus shipping costs
Subject to prior sale
Control cable, 411601405, Kabeltronik
Flexible Control cable FRNC for measuring, control and regulation technology as well as data processing, where the use of halogen free and flame retardant materials is mandatory.
Features
- Halogen-free
- Flame-retardant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Outer diameter | 6 mm | |
| Core colour sequence | DIN 47100 | |
| Test voltage | 1.2 kV | |
| Rated voltage | 500 V | |
| Core insulation material | FRNC | |
| Halogen free | Yes | |
| Cable cross-section | 0.14 mm² | |
| Cable material | copper, bright | |
| Temperature range (unmoved) | -40 °C to 90 °C | |
| Conductor category | CL.5 = fine stranded | |
| Shielding | unshielded | |
| Drag chain suitable | No | |
| Colour | gray | |
| Material | FRNC | |
| Product type | control line | |
| Number of cores | 16 | |
| Protective conductor available | No | |
| AWG cross-section | AWG 26 | |
| Temperature range (active) | -40 °C to 90 °C |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Ring with 100 meters |
| Customs tariff number | 85444995 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
