410310005 | Kabeltronik

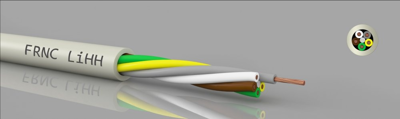

FRNC control line KATRONIC LiHH 3 x 1.0 mm², AWG 18, unshielded, gray, 410310005
Unit Price (€ / mtr.)
2.6775 € *
Available in 7 Days: 43 mtr. - if ordered today
Total Price:
267.75 € *
Price list
Quantity
Price per unit*
100 mtr.
2.6775 €
500 mtr.
2.4157 €
*incl. VAT plus shipping costs
Subject to prior sale
Control cable, 410310005, Kabeltronik
Flexible Control cable FRNC for measuring, control and regulation technology as well as data processing, where the use of halogen free and flame retardant materials is mandatory.
Features
- Halogen-free
- Flame-retardant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Drag chain suitable | No | |
| Material | FRNC | |
| Protective conductor available | No | |
| AWG cross-section | AWG 18 | |
| Rated voltage | 500 V | |
| Core colour sequence | DIN 47100 | |
| Cable material | copper, bright | |
| Conductor category | CL.5 = fine stranded | |
| Test voltage | 1.2 kV | |
| Product type | control line | |
| Temperature range (active) | -40 °C to 90 °C | |
| Number of cores | 3 | |
| Core insulation material | FRNC | |
| Shielding | unshielded | |
| Halogen free | Yes | |
| Temperature range (unmoved) | -40 °C to 90 °C | |
| Colour | gray | |
| Outer diameter | 5.4 mm | |
| Cable cross-section | 1.0 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Original Packaging | Ring with 100 meters |
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
