341601000 | Kabeltronik
PVC control line LifYDY 16 x 0.10 mm², shielded, black, 341601000
Unit Price (€ / mtr.)
7.8778 € *
Available: 100 mtr.
Available in 7 Days: 20,142 mtr. - if ordered today
Total Price:
7.88 € *
Price list
Quantity
Price per unit*
1 mtr.
7.8778 €
10 mtr.
7.0924 €
50 mtr.
6.2951 €
100 mtr.
5.7715 €
500 mtr.
5.2479 €
*incl. VAT plus shipping costs
Subject to prior sale

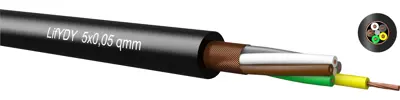

Miniature control cable, 341601000, Kabeltronik
The 341601000 is a miniature control cable, preferably for applications in motion, without movement by compulsion and tensile load as well as miniature devices, alarm systems, light barriers, signalling systems, etc., where highest exibility and fail-safe characteristic with small outside diameter are necessary.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Halogen free | No | |
| Shielding | shielded | |
| Temperature range (unmoved) | -20 °C to 70 °C | |
| Rated voltage | 300 V | |
| Number of cores | 16 | |
| Core insulation material | PVC | |
| Temperature range (active) | -5 °C to 70 °C | |
| Test voltage | 900 V | |
| Material | PVC | |
| Cable cross-section | 0.10 mm² | |
| Cable material | copper, bright | |
| Colour | black | |
| Version | miniature control line |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 100 meters |
| Country of origin | DE |
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
