341600500 | Kabeltronik
PVC control line LifYDY 16 x 0.05 mm², shielded, black, 341600500
Unit Price (€ / mtr.)
7.9492 € *
Available: 100 mtr.
Available in 7 Days: 8,735 mtr. - if ordered today
Total Price:
7.95 € *
Price list
Quantity
Price per unit*
1 mtr.
7.9492 €
10 mtr.
7.1519 €
50 mtr.
6.3546 €
100 mtr.
5.8310 €
500 mtr.
5.2955 €
*incl. VAT plus shipping costs
Subject to prior sale

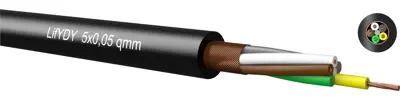

Miniature control cable, 341600500, Kabeltronik
The 341600500 is a miniature control cable, preferably for applications in motion, without movement by compulsion and tensile load as well as miniature devices, alarm systems, light barriers, signalling systems, etc., where highest exibility and fail-safe characteristic with small outside diameter are necessary.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | control line | |
| Number of cores | 16 | |
| Cable cross-section | 0.05 mm² | |
| Colour | black | |
| Material | PVC | |
| Outer diameter | 4.8 mm | |
| Shielding | shielded | |
| Halogen free | No | |
| Protective conductor available | No | |
| Cable material | copper, bright | |
| Conductor category | CL.6 = finest stranded | |
| Core insulation material | PVC | |
| Core colour sequence | DIN 47100 | |
| Rated voltage | 100 V | |
| Temperature range (unmoved) | -20 °C to 70 °C | |
| Temperature range (active) | -5 °C to 70 °C | |
| Test voltage | 500 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Original Packaging | Reel with 100 meters |
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
