340801000 | Kabeltronik
PVC control line LifYDY 8 x 0.10 mm², shielded, black, 340801000
Unit Price (€ / mtr.)
3.9865 € *
Available: 98 mtr.
Available in 7 Days: 17,635 mtr. - if ordered today
Total Price:
3.99 € *
Price list
Quantity
Price per unit*
1 mtr.
3.9865 €
10 mtr.
3.5819 €
50 mtr.
3.1892 €
100 mtr.
2.9274 €
500 mtr.
2.6537 €
*incl. VAT plus shipping costs
Subject to prior sale

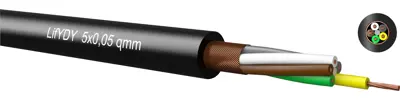

Miniature control cable, 340801000, Kabeltronik
The 340801000 is a miniature control cable, preferably for applications in motion, without movement by compulsion and tensile load as well as miniature devices, alarm systems, light barriers, signalling systems, etc., where highest exibility and fail-safe characteristic with small outside diameter are necessary.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage | 300 V | |
| Version | miniature control line | |
| Colour | black | |
| Temperature range (unmoved) | -20 °C to 70 °C | |
| Number of cores | 8 | |
| Core insulation material | PVC | |
| Shielding | shielded | |
| Halogen free | No | |
| Test voltage | 900 V | |
| Temperature range (active) | -5 °C to 70 °C | |
| Material | PVC | |
| Cable material | copper, bright | |
| Cable cross-section | 0.10 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 100 meters |
| Country of origin | DE |
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
