340301000 | Kabeltronik
PVC control line LifYDY 3 x 0.10 mm², shielded, black, 340301000
Unit Price (€ / mtr.)
1.9873 € *
Available: 90 mtr.
Available in 7 Days: 10,995 mtr. - if ordered today
Total Price:
1.99 € *
Price list
Quantity
Price per unit*
1 mtr.
1.9873 €
10 mtr.
1.7850 €
50 mtr.
1.5946 €
100 mtr.
1.4637 €
500 mtr.
1.3209 €
*incl. VAT plus shipping costs
Subject to prior sale

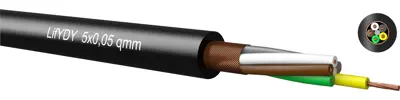

Miniature control cable, 340301000, Kabeltronik
The 340301000 is a miniature control cable, preferably for applications in motion, without movement by compulsion and tensile load as well as miniature devices, alarm systems, light barriers, signalling systems, etc., where highest exibility and fail-safe characteristic with small outside diameter are necessary.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Halogen free | No | |
| Colour | black | |
| Test voltage | 900 V | |
| Cable cross-section | 0.10 mm² | |
| Version | miniature control line | |
| Material | PVC | |
| Temperature range (active) | -5 °C to 70 °C | |
| Number of cores | 3 | |
| Rated voltage | 300 V | |
| Temperature range (unmoved) | -20 °C to 70 °C | |
| Shielding | shielded | |
| Core insulation material | PVC | |
| Cable material | copper, bright |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
| Country of origin | DE |
| Original Packaging | Reel with 100 meters |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
