340300500 | Kabeltronik
PVC control line LifYDY 3 x 0.05 mm², shielded, black, 340300500
Unit Price (€ / mtr.)
1.7850 € *
Available: 250 mtr.
Available in 7 Days: 7,980 mtr. - if ordered today
Total Price:
1.79 € *
Price list
Quantity
Price per unit*
1 mtr.
1.7850 €
10 mtr.
1.6065 €
50 mtr.
1.4280 €
250 mtr.
1.3090 €
500 mtr.
1.1900 €
*incl. VAT plus shipping costs
Subject to prior sale

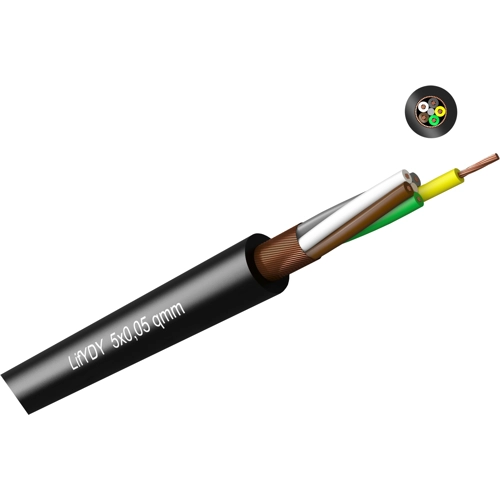

Miniature control cable, 340300500, Kabeltronik
The 340300500 is a miniature control cable, preferably for applications in motion, without movement by compulsion and tensile load as well as miniature devices, alarm systems, light barriers, signalling systems, etc., where highest exibility and fail-safe characteristic with small outside diameter are necessary.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Temperature range (unmoved) | -20 °C to 70 °C | |
| Colour | black | |
| Halogen free | No | |
| Cable cross-section | 0.05 mm² | |
| Number of cores | 3 | |
| Protective conductor available | No | |
| Test voltage | 500 V | |
| Material | PVC | |
| Shielding | shielded | |
| Conductor category | CL.6 = finest stranded | |
| Core colour sequence | DIN 47100 | |
| Temperature range (active) | -5 °C to 70 °C | |
| Cable material | copper, bright | |
| Rated voltage | 100 V | |
| Outer diameter | 2.8 mm | |
| Product type | control line | |
| Core insulation material | PVC |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
| Country of origin | DE |
| Original Packaging | Reel with 250 meters |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
