340200500 | Kabeltronik
PVC control line LifYDY 2 x 0.05 mm², shielded, black, 340200500
Unit Price (€ / mtr.)
1.5351 € *
Available: 250 mtr.
Available in 7 Days: 6,180 mtr. - if ordered today
Total Price:
1.54 € *
Price list
Quantity
Price per unit*
1 mtr.
1.5351 €
10 mtr.
1.3804 €
50 mtr.
1.2257 €
250 mtr.
1.1305 €
500 mtr.
1.0234 €
*incl. VAT plus shipping costs
Subject to prior sale

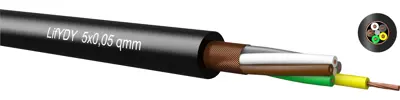

Miniature control cable, 340200500, Kabeltronik
The 340200500 is a miniature control cable, preferably for applications in motion, without movement by compulsion and tensile load as well as miniature devices, alarm systems, light barriers, signalling systems, etc., where highest exibility and fail-safe characteristic with small outside diameter are necessary.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Temperature range (active) | -5 °C to 70 °C | |
| Cable cross-section | 0.05 mm² | |
| Outer diameter | 2.7 mm | |
| Temperature range (unmoved) | -20 °C to 70 °C | |
| Core insulation material | PVC | |
| Test voltage | 500 V | |
| Material | PVC | |
| Version | miniature control line | |
| Cable material | copper, bright | |
| Shielding | shielded | |
| Rated voltage | 100 V | |
| Number of cores | 2 | |
| Colour | black | |
| Halogen free | No |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
| Original Packaging | Reel with 250 meters |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
