246500909 | Kabeltronik
PUR/PVC sensor line Sensocord-M 5 x 0.09 mm², unshielded, black, 246500909
Unit Price (€ / mtr.)
2.9274 € *
Available: 73 mtr.
Available in 7 Days: 7,300 mtr. - if ordered today
Total Price:
2.93 € *
Price list
Quantity
Price per unit*
1 mtr.
2.9274 €
10 mtr.
2.5704 €
100 mtr.
2.3086 €
500 mtr.
2.1301 €
1000 mtr.
1.8683 €
*incl. VAT plus shipping costs
Subject to prior sale

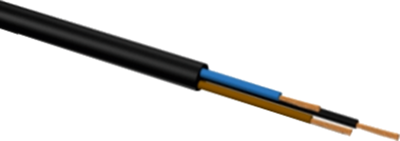

Miniature sensor cables, non-shielded, type Kabeltronik Sensocord-M.
High resistance against mechanical stress, oils, grease and UV radiation, with 2C outer insulation
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Cable cross-section | 0.09 mm² | |
| Material | PUR/PVC | |
| Product type | sensor line | |
| Core insulation material | PP | |
| Test voltage | 1.2 kV | |
| Shielding | unshielded | |
| Conductor category | CL.6 = finest stranded | |
| Colour | black | |
| Rated voltage | 300 V | |
| Temperature range (active) | -15 °C to 80 °C | |
| Outer diameter | 2.9 mm | |
| Cable material | copper, bright | |
| Number of cores | 5 | |
| Temperature range (unmoved) | -30 °C to 80 °C |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Ring with 100 meters |
| Customs tariff number | 85444995 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
