246300909 | Kabeltronik

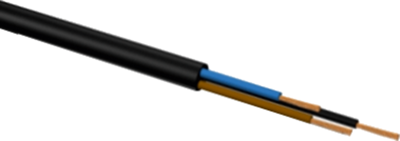

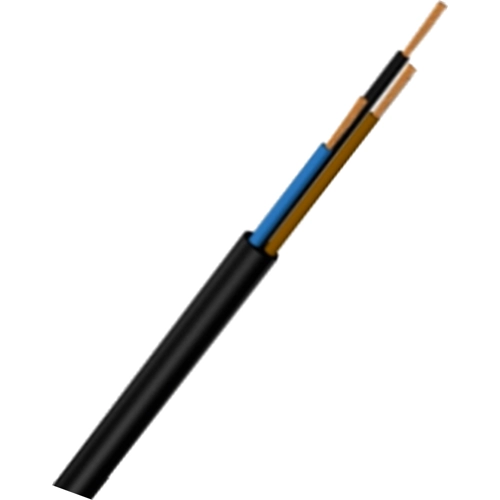

PUR/PVC control line Sensocord-M 3 x 0.09 mm², unshielded, black, 246300909
Unit Price (€ / mtr.)
2.2253 € *
Available: 108 mtr.
Available in 7 Days: 8,088 mtr. - if ordered today
Total Price:
2.23 € *
Price list
Quantity
Price per unit*
1 mtr.
2.2253 €
10 mtr.
1.9516 €
100 mtr.
1.7493 €
500 mtr.
1.6184 €
1000 mtr.
1.4161 €
*incl. VAT plus shipping costs
Subject to prior sale
Miniature sensor cables, non-shielded, type Kabeltronik Sensocord-M.
High resistance against mechanical stress, oils, grease and UV radiation, with 2C outer insulation
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Core insulation material | PP | |
| Temperature range (active) | -15 °C to 80 °C | |
| Test voltage | 1.2 kV | |
| Colour | black | |
| Number of cores | 3 | |
| Shielding | unshielded | |
| Outer diameter | 2.4 mm | |
| Conductor category | CL.6 = finest stranded | |
| Temperature range (unmoved) | -30 °C to 80 °C | |
| Material | PUR/PVC | |
| Rated voltage | 300 V | |
| Product type | control line | |
| Cable material | copper, bright | |
| Cable cross-section | 0.09 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
| Original Packaging | Ring with 100 meters |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
