244022200 | Kabeltronik

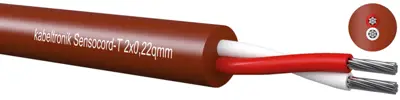

Silicone control line Sensocord-T 2 x 0.22 mm², AWG 24, unshielded, red brown, 244022200
Unit Price (€ / mtr.)
4.6053 € *
Available: 111 mtr.
Available in 7 Days: 3,316 mtr. - if ordered today
Total Price:
4.61 € *
Price list
Quantity
Price per unit*
1 mtr.
4.6053 €
10 mtr.
4.0222 €
100 mtr.
3.5938 €
500 mtr.
3.3082 €
1000 mtr.
2.8798 €
*incl. VAT plus shipping costs
Subject to prior sale
Sensor cables, non-shielded, heat-resistant, type Kabeltronik Sensocord-T.
Ultra-flexible, high resistance to oil and grease products. Tinned stranded copper wires (7 x 0.2 mm)
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 24 | |
| Core insulation material | FEP | |
| Temperature range (active) | -30 °C to 180 °C | |
| Test voltage | 1.5 kV | |
| Colour | red brown | |
| Halogen free | No | |
| Number of cores | 2 | |
| Shielding | unshielded | |
| Outer diameter | 3.5 mm | |
| Temperature range (unmoved) | -40 °C to 180 °C | |
| Material | silicone | |
| Rated voltage | 120 V | |
| Core colour sequence | red/white | |
| Product type | control line | |
| Cable material | copper, tin-plated | |
| Cable cross-section | 0.22 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
| Original Packaging | Ring with 100 meters |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
