020402500 | Kabeltronik

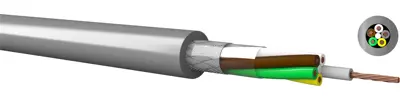

PVC control line LiYCY 4 x 0.25 mm², shielded, gray, 020402500
Unit Price (€ / mtr.)
2.8560 € *
Available: 90 mtr.
Available in 7 Days: 7,963 mtr. - if ordered today
Total Price:
2.86 € *
Price list
Quantity
Price per unit*
1 mtr.
2.8560 €
10 mtr.
2.4514 €
50 mtr.
2.2491 €
100 mtr.
2.0468 €
500 mtr.
1.8445 €
*incl. VAT plus shipping costs
Subject to prior sale
Control cable, 020402500, Kabeltronik
Control cable measuring-, signal and automatic technology in electronics as well as process- and machine-control, inside dry, moistly and wetly rooms. Not suitable for continuous outdoor use. Increased interference protection and increased mechanical maximum stress by copper braid.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Core colour sequence | DIN 47100 | |
| Shielding | shielded | |
| Temperature range (active) | -5 °C to 70 °C | |
| Test voltage | 1.2 kV | |
| Rated voltage | 500 V | |
| Version | control line | |
| Cable material | copper, bright | |
| Halogen free | No | |
| Material | PVC | |
| Cable cross-section | 0.25 mm² | |
| Outer diameter | 4.8 mm | |
| Colour | gray | |
| Temperature range (unmoved) | -30 °C to 70 °C | |
| Number of cores | 4 | |
| Core insulation material | PVC |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
| Country of origin | DE |
| Original Packaging | Ring with 100 meters |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
