7412PS490 | Kabeltronik

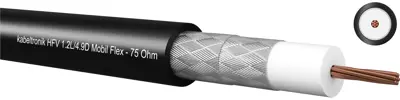

Video cable 75 Ohm HFV Mobil PURFlex 1.2L/4.9D
Unit Price (€ / mtr.)
4.2602 € *
Available in 7 Days: 3,906 mtr. - if ordered today
Video cable, 7412PS490, Kabeltronik
Flexible HDTV-SDI videocable for mobile using in the professional area. HFV Mobil PURFlex is screened with a double copper braid and is UV resistant.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| min. operating temperature | -35 °C | |
| max. operating temperature | 75 °C | |
| Outer diameter | 7.1 mm | |
| Material | PUR | |
| Cable structure | 7 x 0.4 mm | |
| Capicity/m | 54 pF/m | |
| Impedance | 75 Ω | |
| Shielding | shielded | |
| Dielectric material | PE | |
| Cable material | copper, bright |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85442000 |
| Country of origin | IT |
| Original Packaging | Ring with 100 meters |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
