S4B-XH-A (LF)(SN) | JST
Pin header, 4 pole, pitch 2.5 mm, angled, white, S4B-XH-A (LF)(SN)
Unit Price (€ / pc.)
0.1618 € *
Standard delivery time from the manufacturer is: 20 Weeks
Steckverbinder 2,5 mm Serie XH Typ JST.
Nennstrom: 3,0 AUC, Nennspannung: 250 V AC/DC, Spannungsfestigkeit: 1000 VAC (60 s), Kontaktwiderstand (Anfangswert): max. 10 mOhm, Isolationswiderstand: min. 1000 MOhm, Temperaturbereich: –25 bis +85 °C. Zulassungen: TÜV, UL, CSA.
Stecksockel abgewinkelt für Leiterplatten-Montage.

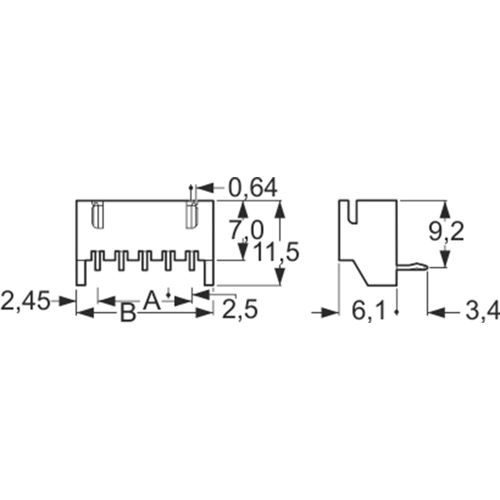

Type: S4B-XH-A (LF)(SN), 4-polig, A 7,5 mm, B 12,4 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | white | |
| Additional parts | equipped | |
| Number of rows | 1 | |
| Connection | solder pin | |
| Rated voltage | 250 V | |
| Orientation | angled | |
| Type of locking | Yes | |
| contact surface | tin-plated | |
| Version | pin header | |
| Connection plating | tin-plated | |
| Pin number | 4 pole | |
| Contact type | pin | |
| Grid | 2.5 mm | |
| Rated current | 3 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
