S04B-F31SK-GGXR (LF)(AU) | JST

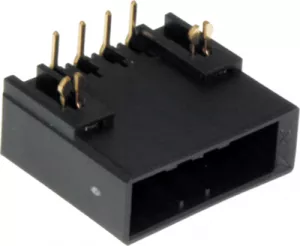

Pin header, 4 pole, pitch 3.81 mm, angled, black, S04B-F31SK-GGXR (LF)(AU)
Unit Price (€ / pc.)
2.3324 € *
Available: 0 pcs.
Leadtime: 6 Weeks **
Connectors, 3.81 mm, series J300, type JST.
3.81 mm grid, with interlock; Rated voltage: 250 V AC/DC. Surge voltage: 1500 VAC/min. Conductor cross-section: 0.08 to 2.0 mm² (AWG 28 to AWG 14). Contact resistance: max. 5.0 mohm. Insulation resistance: 1000 Mohm. Contacts: CuNi with 0.38 µm gold-plating. Housing: PBT, UL 94 V-0, black. Operating temperatures: –55 to +105 °C. Certifications: UL, CSA.
PCB sockets, single-row, angled, series J310S, type S..B-F31SK.

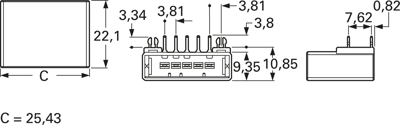

Technical attributes (type, number of poles, dimensions): B04B–F31SK–GGXR, 4–pole, C 25.43 mm
Technical specifications
| Connection | Lötstift | |
| Number of rows | 1 | |
| Version | Stiftleiste | |
| Additional parts | bestückt | |
| Colour | schwarz | |
| Contact type | Stift | |
| contact surface | vergoldet | |
| Rated voltage | 250 V | |
| Rated current | 15 A | |
| Orientation | abgewinkelt | |
| Pin number | 4-polig | |
| Grid | 3.81 mm | |
| Type of locking | Ja |
Download
Logistics
| Country of origin | JP |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
