F32FSS-06V-KX | JST

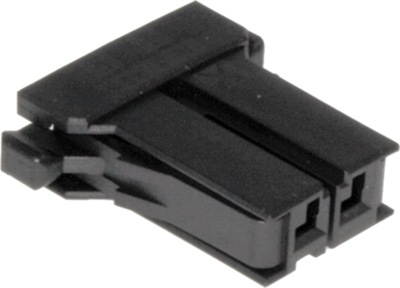

Plug housing, 6 pole, pitch 5.08 mm, straight, black, F32FSS-06V-KX
Unit Price (€ / pc.)
1.6422 € *
Available: 0 pcs.
Leadtime: 6 Weeks **
Connectors, 5.08 mm, series J300, type JST.
5.08 mm grid, with interlock; Rated voltage: 600 V AC/DC. Surge voltage: 2200 VAC/min. Conductor cross-section: 0.08 to 2.0 mm² (AWG 28 to AWG 14). Contact resistance: max. 5.0 mohm. Insulation resistance: 1000 Mohm. Contacts: CuNi 0.38 µm gold-plating. Housi
Female connector housings, single-row, bare, series J320S, type F32FSS.

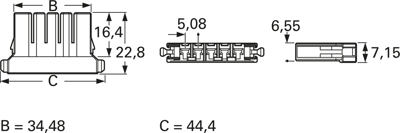

Type: F32FSS–06V–KX, 6–pole, B 34.48, C 44.4 mm
Technical specifications
| Connection | Crimpanschluss | |
| Number of rows | 1 | |
| Version | Steckergehäuse | |
| Colour | schwarz | |
| Contact type | Stift | |
| contact surface | vergoldet | |
| Rated voltage | 600 V | |
| Rated current | 15 A | |
| Orientation | gerade | |
| Pin number | 6-polig | |
| Grid | 5.08 mm | |
| Type of locking | Ja |
Download
Logistics
| Country of origin | JP |
| Customs tariff number | 85472000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
