BM05B-PASS-TFT (LF)(SN) | JST

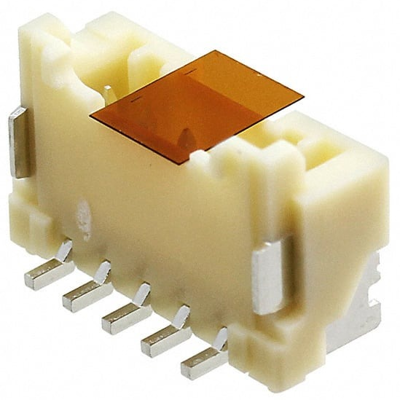

Wire-to-board connector, 5 pole, pitch 2 mm, straight, natural, BM05B-PASS-TFT (LF)(SN)
Order No.: 71F1052
EAN: 4099891008499
MPN:
BM05B-PASS-TFT (LF)(SN)
Unit Price (€ / pc.)
1.0234 € *
Available: 1,500 pcs.
Total Price:
1.02 € *
Price list
Quantity
Price per unit*
1 pcs.
1.0234 €
10 pcs.
0.9282 €
50 pcs.
0.8211 €
250 pcs.
0.7140 €
*incl. VAT plus shipping costs
Subject to prior sale
Pin headers, BM05B-PASS-TFT (LF)(SN), JST
The PA Series wire-to-board crimp connector with secure locking. The housing has a locking device that prevents accidental disconnection due to cable routing or vibration, as well as reversal and mating of different circuit numbers. The connectors of this series are supplied with a top/side mounting direction on the PCB.
Features
- Interchangeable between crimp and IDC socket
- Secondary Retainer
- Variation of the tableware
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact type | pin | |
| Version | pin header | |
| Additional parts | equipped | |
| contact surface | tin-plated | |
| Number of rows | 1 | |
| Rated voltage | 250 V | |
| Type of locking | Yes | |
| Grid | 2 mm | |
| Orientation | straight | |
| Connection plating | tin-plated | |
| Colour | natural | |
| Rated current | 3 A | |
| Pin number | 5 pole | |
| Connection | solder pin |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85472000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
