B5B-PH-SM4-TBT (LF)(SN) | JST

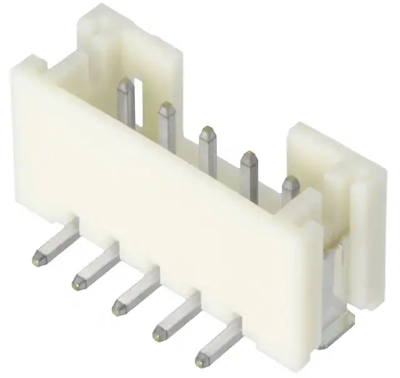

Pin header, 5 pole, pitch 2 mm, straight, white, B5B-PH-SM4-TBT (LF)(SN)
Order No.: 71F1053
EAN: 4099891008505
MPN:
B5B-PH-SM4-TBT (LF)(SN)
Unit Price (€ / pc.)
0.7021 € *
Standard delivery time from the manufacturer is: 20 Weeks
Total Price:
7.02 € *
Price list
Quantity
Price per unit*
10 pcs.
0.7021 €
50 pcs.
0.6188 €
*incl. VAT plus shipping costs
Subject to prior sale
Pin headers, B5B-PH-SM4-TBT (LF)(SN), JST
JST's PH Series surface mount, surface mount jacketed pin headers are single row 2.0mm pitch crimp connectors with wire-to-board separation. They are thin, flat, highly reliable connectors with 8.0 mm height and 4.5 mm width. Fully jacketed headers have walls on all four sides to prevent improper connection to the terminal housing and to prevent the introduction of flux and other contaminants. Its housing is made of heat-resistant resin so that it is not adversely affected during reflow soldering. Due to its compact size and surface mountable termination, this connector meets the requirement for high density assembly of components in electronic products.
Features
- Rated current of 2A
- Nominal voltage of 100VAC/DC
- Temperature range from -25°C to 85°C
- Wire size from 32 AWG to 24 AWG
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage | 100 V | |
| Orientation | straight | |
| Pin number | 5 pole | |
| Version | pin header | |
| Colour | white | |
| Grid | 2 mm | |
| Rated current | 2 A | |
| Contact type | pin | |
| Number of rows | 1 | |
| Connection | solder pin | |
| Additional parts | equipped |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MY |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
