B3P-VH (LF)(SN) | JST

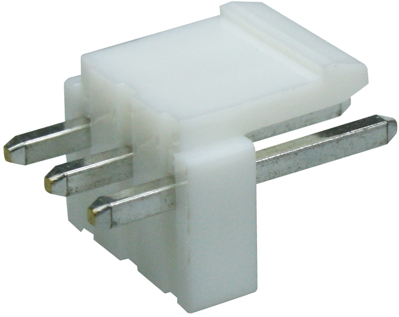

Pin header, 3 pole, pitch 3.96 mm, straight, white, B3P-VH (LF)(SN)
Unit Price (€ / pc.)
0.2154 € *
Available: 1,884 pcs.
Total Price:
4.31 € *
Price list
Quantity
Price per unit*
20 pcs.
0.2154 €
100 pcs.
0.1892 €
500 pcs.
0.1737 €
*incl. VAT plus shipping costs
Subject to prior sale
Headers for PCB assembly, top entry.
Rated current: 10 AUC. Rated voltage: 250 V AC/DC. Dielectric strength: 1500 VAC (60 s). Contact resistance (new state): max. 10 mohm. Insulation resistance: min. 1000 Mohm. Operating temperatures: - 25 to +85 °C. Certifications: UL, CSA.
Housing material: PA 66, UL 94 V-0. Color: plain colored (white). Connections: brass, copper-undercoated, tinned.

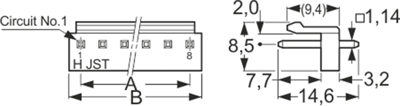

Technical attributes (type, number of poles, dimension A, dimension B): B3P-VH (LF)(SN), 3-pole, A 7.92 mm, B 11.82 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 3.96 mm | |
| Pin number | 3 pole | |
| Colour | white | |
| Connection plating | tin-plated | |
| Contact type | pin | |
| Rated current | 10 A | |
| Version | pin header | |
| Connection | solder pin | |
| Additional parts | equipped | |
| Number of rows | 1 | |
| Rated voltage | 250 V | |
| contact surface | tin-plated | |
| Orientation | straight | |
| Type of locking | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | MY |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
