B2B-ZR (LF)(SN) | JST

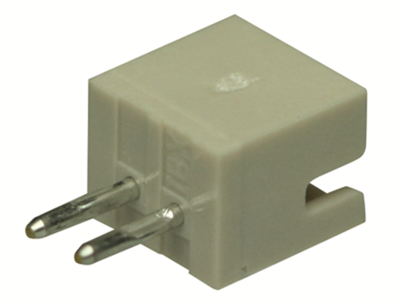

Pin header, 2 pole, pitch 1.5 mm, straight, ivory, B2B-ZR (LF)(SN)
Unit Price (€ / pc.)
0.0678 € *
Available: 36,221 pcs.
Total Price:
0.07 € *
Price list
Quantity
Price per unit*
1 pcs.
0.0678 €
200 pcs.
0.0619 €
500 pcs.
0.0536 €
*incl. VAT plus shipping costs
Subject to prior sale
Steckverbinder 1,5 mm Serie ZH Typ JST.
In kompakter Bauform, zuverlässige Kontaktkonstruktion; Nennstrom: 1,0 AUC, Nennspannung: 50 V AC/DC, Spannungsfestigkeit: 500 VAC (60 s), Kontaktwiderstand (Anfangswert): max. 20 mOhm, Isolationswiderstand: min. 500 MOhm, Temperaturbereich: –25 bis +85 °C. Zulassungen: TÜV, UL, CSA.
Stecksockel gerade für Leiterplatten-Montage.

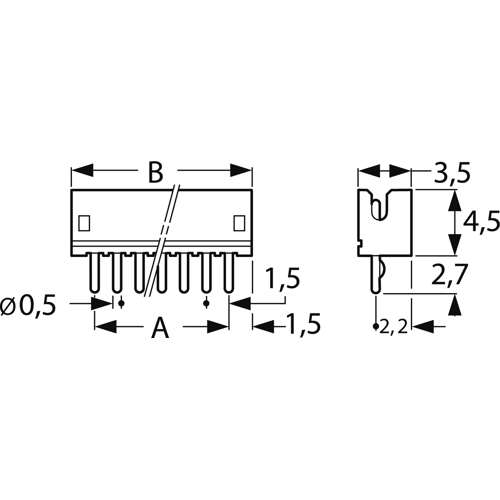

Material Gehäuse: PA 66 , glasfaserverstärkt, UL 94 V-0, Farbe: natur (elfenbein), Anschlüsse: Messing, Cu-Grundierung, verzinnt. Tabellenangaben: Typ, Polzahl, Maß A, Maß B.
Type: B2B-ZR (LF)(SN), 2-polig, A 1,5 mm, B 4,5 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | ivory | |
| Additional parts | equipped | |
| Number of rows | 1 | |
| Connection | solder pin | |
| Rated voltage | 50 V | |
| Orientation | straight | |
| Type of locking | Yes | |
| contact surface | tin-plated | |
| Version | pin header | |
| Connection plating | tin-plated | |
| Pin number | 2 pole | |
| Contact type | pin | |
| Grid | 1.5 mm | |
| Rated current | 1 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | KR |
| Original Packaging | Reel with 2,000 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
