B2B-EH-A (LF)(SN) | JST

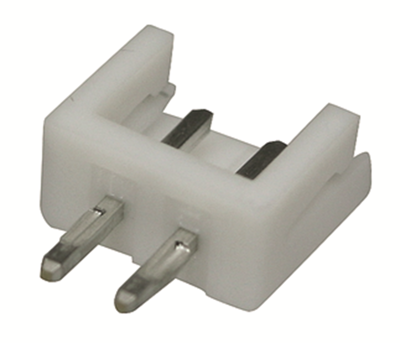

Pin header, 2 pole, pitch 2.5 mm, straight, white, B2B-EH-A (LF)(SN)
Unit Price (€ / pc.)
0.1131 € *
Available: 4,670 pcs.
EH connectors, 2.5 mm series, type JST
Rated current: 3.0 AUC. Rated voltage: 250 V AC/DC. Dielectric strength: 800 VAC (60 s). Contact resistance (new state): max. 10 mohm. Insulation resistance: min. 1000 Mohm. Operating temperatures: - 25 to +85 °C. Certifications: TÜV, UL, CSA.
Shrouded headers, top entry, for PCB assembly.
Housing material: PA 66, UL 94 V-0
Color: plain colored (white)
Connections: brass, copper-undercoated, tinned

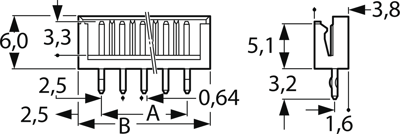

Technical attributes (type, number of poles, dimension A, dimension B): B2B-EH-A (LF)(SN), 2-pole, A 2.5 mm, B 7.5 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection plating | tin-plated | |
| Connection | solder pin | |
| Colour | white | |
| Additional parts | equipped | |
| Pin number | 2 pole | |
| Contact type | pin | |
| Orientation | straight | |
| Type of locking | Yes | |
| Rated voltage | 250 V | |
| contact surface | tin-plated | |
| Version | pin header | |
| Rated current | 3 A | |
| Number of rows | 1 | |
| Grid | 2.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MY |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
