B04P-VL | JST

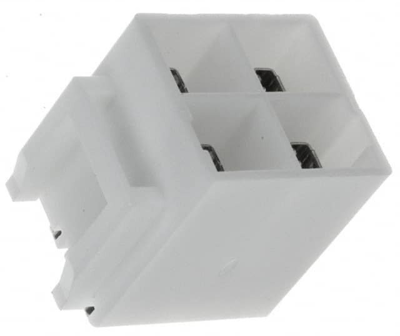

Pin header, 4 pole, pitch 6.2 mm, straight, natural, B04P-VL
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
1.6541 € *
Standard delivery time from the manufacturer is: On Request
Pin header, B04P-VL, JST
This is a 6.2 mm pitch wire-to-board connector with a maximum current rating of 20 A. It comes with a large housing lock to ensure a safe connection for high-current circuits. Additionally, using a retainer prevents incomplete insertion and contact backout, further enhancing connection reliability.
Features
- High current capability
- Housing lance mechanism
- Retainer compatible
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | pin header | |
| Contact type | pin | |
| Pin number | 4 pole | |
| Grid | 6.2 mm | |
| Connection | solder pin | |
| Orientation | straight | |
| Type of locking | Yes | |
| contact surface | tin-plated | |
| Connection plating | tin-plated | |
| Rated voltage | 600 V | |
| Rated current | 20 A | |
| Additional parts | equipped | |
| Number of rows | 1 | |
| Colour | natural |
Download
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
| Electrical equipment take-back |  |
