08T-JWPF-VSLE-D | JST

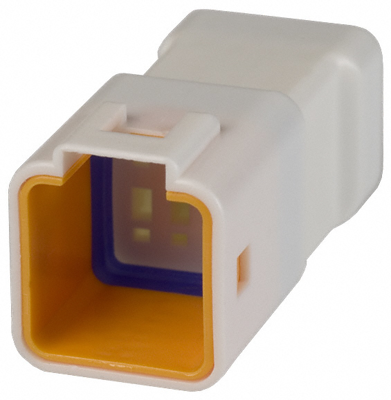

Plug housing, 8 pole, pitch 2 mm, straight, white, 08T-JWPF-VSLE-D
Order No.: 71F5429
EAN: 4099891009359
MPN:
08T-JWPF-VSLE-D
Unit Price (€ / pc.)
1.7374 € *
Available: 1,030 pcs.
Total Price:
1.74 € *
Price list
Quantity
Price per unit*
1 pcs.
1.7374 €
25 pcs.
1.4756 €
100 pcs.
1.3685 €
250 pcs.
1.2971 €
1000 pcs.
1.1900 €
*incl. VAT plus shipping costs
Subject to prior sale
JWPF Connector, 08T-JWPF-VSLE-D, JST
This JWPF connector can be used for the place of which especially waterproof is required.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 3 A | |
| Additional parts | equipped | |
| contact surface | tin-plated | |
| Version | plug housing | |
| Orientation | straight | |
| Connection plating | tin-plated | |
| Grid | 2 mm | |
| Type of locking | Yes | |
| Number of rows | 2 | |
| Contact type | pin | |
| Colour | white | |
| Pin number | 8 pole | |
| Connection | IDC connection | |
| Rated voltage | 100 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | JP |
| Customs tariff number | 85472000 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
