02SR-3S | JST

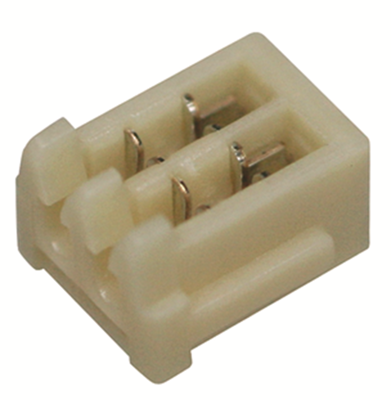

Socket header, 2 pole, pitch 1 mm, straight, natural, 02SR-3S
Unit Price (€ / pc.)
0.1595 € *
Standard delivery time from the manufacturer is: 20 Weeks
Steckverbinder 1,0 mm Serie SR Typ JST.
In kompakter Bauform; Nennstrom: 0,7 ADC, Nennspannung: 50 VDC, Spannungsfestigkeit: 500 VAC (60 s), Kontaktwiderstand (Anfangswert): max. 20 mOhm, Isolationswiderstand: min. 100 MOhm, Temperaturbereich: –25 bis +85 °C. Zulassungen: UL, CSA.
Buchsenleiste gerade mit Schneidklemmanschluss.

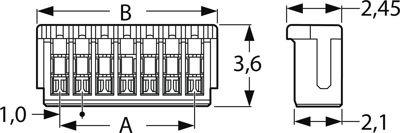

Zur Montage von Litzen mit Querschnitt AWG 30/7; Material Gehäuse: PA, UL 94 V-0, Farbe: natur, Material Kontakte: Phosphorbronze, verzinnt. Tabellenangaben: Typ, Polzahl, Maß A, Maß B.
Type: 02SR-3S, 2-polig, A 1,0 mm, B 3,0 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection plating | tin-plated | |
| Connection | IDC connection | |
| Colour | natural | |
| Additional parts | equipped | |
| Pin number | 2 pole | |
| Contact type | socket | |
| Orientation | straight | |
| Type of locking | Yes | |
| Rated voltage | 50 V | |
| contact surface | tin-plated | |
| Version | socket header | |
| Rated current | 700 mA | |
| Number of rows | 1 | |
| Grid | 1 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
