SBC-USR-ES1 | joy-iT

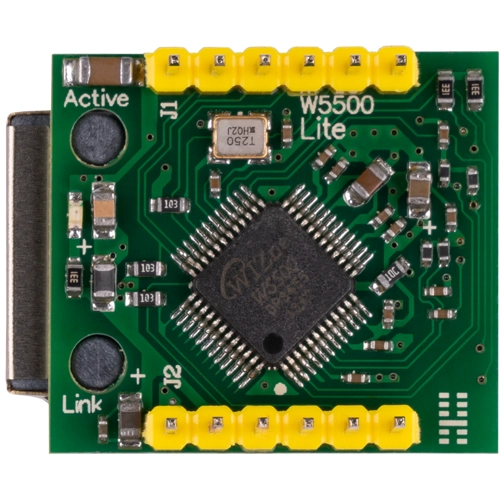

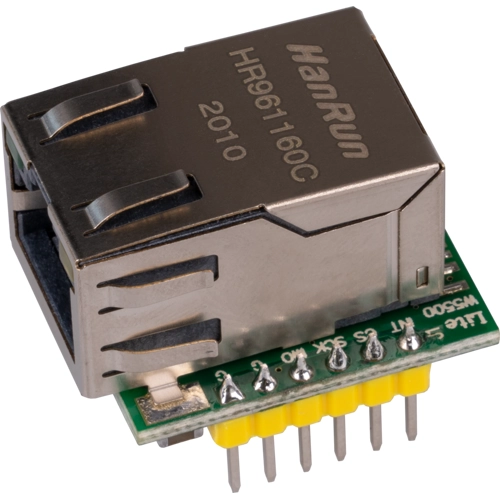

SPI to Ethernet LAN Module RJ45 SBC-USR-ES1from Joy-IT
Order No.: 73S3010
EAN: 4250236822211
MPN:
SBC-USR-ES1
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
10.353 € *
Standard delivery time from the manufacturer is: 1 Week
Ethernet Module, SBC-USR-ES1, joy-iT
This SPI-Ethernet interface converter, you can expand for example your Arduino or your Raspberry Pi Pico with an Ethernet interface. The integrated W5500 chip enables simple control via the SPI interface. Due to its great popularity, both in the maker and industrial sectors, there are already a large number of application examples and libraries to be found online. To process the Ethernet packets, the chip has an integrated 32 kB memory buffer. In addition, the module is highly integrable due to its design and size.
Features
- Integrated full TCP/IP protocol, Wake Up after power failure
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | extension board | |
| Version | SPI-Ethernet interface converter | |
| Suitable for | Raspberry Pi, Arduino | |
| Memory size | 32 KB |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 84733020 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
