RB-RS485 | joy-iT
RS485 HAT for RaspberryPi, Joy-IT
Order No.: 64S4600
EAN: 4250236809427
MPN:
RB-RS485
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
8.7465 € *
Available: 6 pcs.

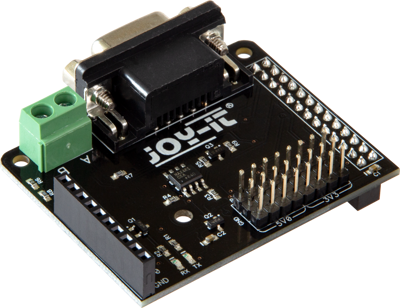

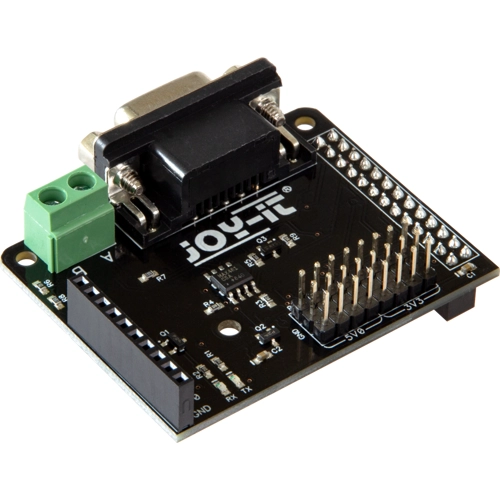

RS485 breakout kit, RB-RS485, joy-iT
With this break out board, you can expand your Raspberry (3) A/B/ B+/ 4B with a serial RS485 interface. It translates the UART signals from GPIO14(TXD) and GPIO15 (RXD) to RS485 level and outputs them to the DB9 connector on pin 2 (A) and pin 3 (B). On the additional pin headers, it is also possible to access the GPIO signals directly. The assignment of the additional header is indicated directly on the expansion board.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | breakout kit | |
| Version | RS485 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 84733020 |
| Country of origin | CN |
| Original Packaging | Carton with 1 piece |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
