BUTTON22C-02 | joy-iT

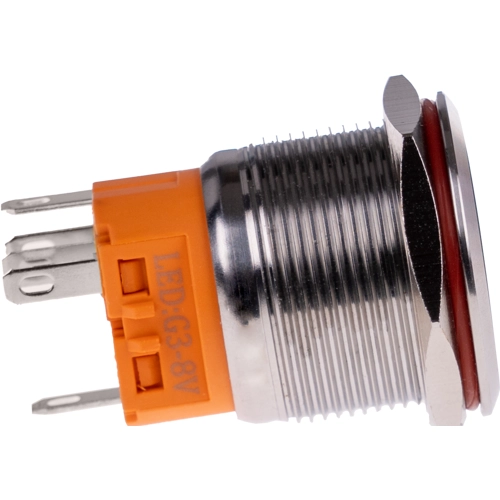

Pushbutton switch, silver, illuminated (red), 15 A/250 V, mounting Ø 22 mm, IP65/IK10, BUTTON22C-02
Order No.: 12G1405
EAN: 4250236825168
MPN:
BUTTON22C-02
Unit Price (€ / pc.)
11.6620 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
11.66 € *
Price list
Quantity
Price per unit*
1 pcs.
11.6620 €
5 pcs.
11.1146 €
15 pcs.
10.6148 €
25 pcs.
10.0079 €
*incl. VAT plus shipping costs
Subject to prior sale
Push button, BUTTON22C-02, joy-iT

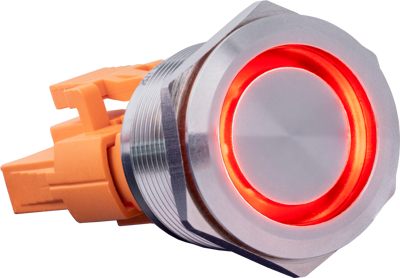

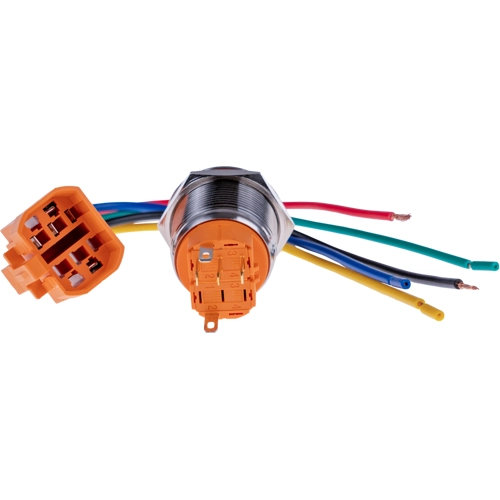

This push button impresses with high-quality materials, protection classes, and ergonomics. It is made of stainless steel and meets the protection classes IP65 (dust and water), IK10 (impact), and PA66 (flame). The protection classes, wide temperature range, and durability make this push button suitable for many applications. The push button has a bright LED ring (red). Due to the concave design of the surface, there are no sharp edges. The connecting cable and the socket have different colors and shapes, so confusing the variants (22A / 22B / 22C) is impossible.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | solder lug | |
| Breaking capacity | 15 A/250 V | |
| Actuator colour | silver | |
| contact surface | silver-plated | |
| Farbe der Beleuchtung | red | |
| Printed | No | |
| Design | round | |
| illuminated | Yes | |
| Protection class | IP65/IK10 | |
| Latching switching function | latching | |
| Installation diameter | 22 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365011 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
