BUTTON19C01 | joy-iT
Pushbutton, unlit , 2 A/36 V, mounting Ø 19 mm, IP65, BUTTON19C01
Order No.: 12G1069
EAN: 4250236825076
MPN:
BUTTON19C01
Unit Price (€ / pc.)
5.2598 € *
Available: 22 pcs.
Total Price:
5.26 € *
Price list
Quantity
Price per unit*
1 pcs.
5.2598 €
10 pcs.
4.7838 €
50 pcs.
4.4268 €
100 pcs.
4.0579 €
500 pcs.
3.8199 €
*incl. VAT plus shipping costs
Subject to prior sale

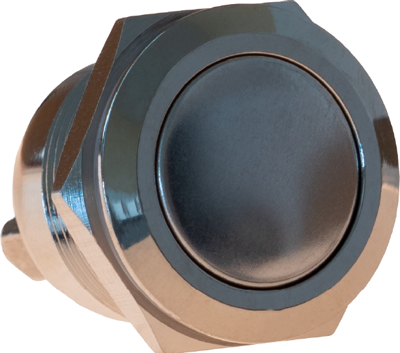

Momentary pushbutton, BUTTON19C01, joy-iT
This momentary steel pushbutton convinces with high-quality materials, protection class, and ergonomics. It is made of stainless steel and meets the protection class IP65 (dust and water). Due to the design, wide temperature range, and durability, the steel probe is suitable for many applications. Due to the design of the surface, there are no sharp edges. The connection through a screw terminal allows a quick and easy installation in your project.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| contact surface | silver-plated | |
| Vandal-proof | No | |
| Latching switching function | groping | |
| Protection class | IP65 | |
| Installation diameter | 19 mm | |
| Breaking capacity | 2 A/36 V | |
| illuminated | No | |
| Design | round | |
| Connection | screw connection | |
| Printed | No |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365011 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
