30161 | Jokari
Stripping knife for PVC-insulated data communication and control cables, 0.2-0.8 mm², AWG 24-18, cable Ø 4.5-10 mm, L 124 mm, 44 g, 30161
Order No.: 06L8773
EAN: 4011391301610
MPN:
30161
PC-CAT
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
22.5981 € *
Available: 2 pcs.
Total Price:
22.60 € *
Price list
Quantity
Price per unit*
1 pcs.
22.5981 €
5 pcs.
21.4081 €
*incl. VAT plus shipping costs
Subject to prior sale

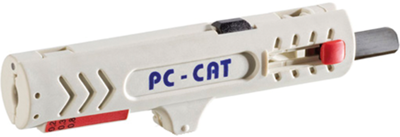

Strippers PC-CAT, type Jokari 30161.
For PVC-insulated data communication/control cables (e.g. Cat5, Cat6, Cat7 cables, twisted-pair cables, network cables, cables with thin outer insulation, etc.), it is not necessary to adjust the cutting depth; Cable diameter: 4.5 to 10 mm. Conductor cross-section: 0.2, 0.3 and 0.8 mm² (AWG 24, 22 and 18). Housing material: polyamide. Blades: hardened special steel, with titanium nitride coating. Dimensions: 124 x 35 x 24 mm. Weight: 44 g. Tests: TÜV and GS.
Type: 30161, stripper PC-CAT
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | stripping knife | |
| Suitable for | PVC-insulated data communication and control cables | |
| Cable cross-section | 0.2-0.8 mm² | |
| AWG cross-section | AWG 24-18 | |
| Cable Diameter | 4.5-10 mm | |
| 1000V Insulated | No | |
| Length | 124 mm | |
| Weight | 44 g |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 82119300 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | not_relevant |
