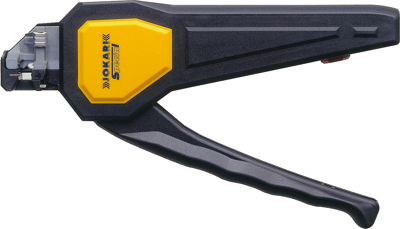

20060 | Jokari

Stripping pliers for solid and stranded wires, 0.5-6.0 mm², AWG 20-10, L 180 mm, 157 g, 20060

Order No.: 05L7846
EAN: 4099891368531
MPN:
20060
Special
20060 Jokari Stripping Pliers, Stripping Tools
Image may differ
This item is no longer available.
As an alternative, we recommend the following item:

Wire strippers Special, type Jokari 20060

Type: 20060, wire stripper Special

ergonomic, automatic and precise stripping tool for copper wires from 0.5 to 6.0 mm², with integrated diagonal cutter for copper wires with a maximum diameter of 2.8 mm.

Features: easy handling through side insertion of the conductors, no adjustment of the cross-sectional diameter required, no damage to the conductor or insulation, adjustable length stop for stripping to constant lengths.

Specially hardened and replaceable stripping blades.

Tool body made of glass fiber-reinforced polyamide.

Weight: 160 g.

Technical specifications
Filter Property Value
Weight 157 g
AWG cross-section AWG 20-10
Length 180 mm
Cable cross-section 0.5-6.0 mm²
Product type stripping pliers
Suitable for solid and stranded wires
1000V Insulated No
Logistics
Property Value
Country of origin DE
Customs tariff number 82032000
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform not_relevant
Replacement
