20050 | Jokari
Stripping pliers for PVC-coated cables, 0.2-6.0 mm², AWG 24-10, cable Ø 6-15 mm, L 165 mm, 91 g, 20050
Order No.: 05L7824
EAN: 4011391200500
MPN:
20050
Super 4 plus
Unit Price (€ / pc.)
21.0035 € *
Available: 5 pcs.

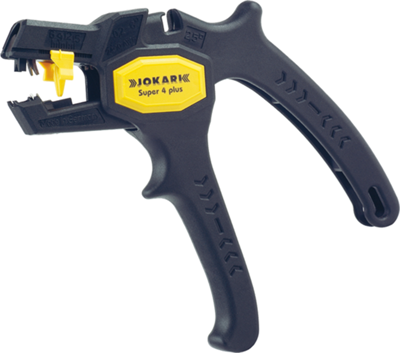

Wire strippers Super 4 plus, type Jokari 20050
Ergonomic automatic wire stripper for solid, flexible and stranded wires from 0.2 to 6.0 mm² (AWG 24 to 10), it is not necessary to adjust the tool to the cross-section. With well-positioned diagonal cutter on the outer edge for conductors to max. 2.5 mm².
Length stop: 6.0 to 15 mm
Material stripper body: glass fiber-reinforced Polyamide
Tests: TÜV and GS
Weight: 90 g.
Type: 20050
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 24-10 | |
| Product type | stripping pliers | |
| Length | 165 mm | |
| Cable cross-section | 0.2-6.0 mm² | |
| Weight | 91 g | |
| Cable Diameter | 6-15 mm | |
| Suitable for | PVC-coated cables | |
| 1000V Insulated | No |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 82032000 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | not_relevant |
