ROGO TRANS | Janitza
Current transducer, ROGO TRANS
Order No.: 30K4191
EAN: 4251861102471
MPN:
ROGO TRANS
15.03.613
Unit Price (€ / pc.)
267.75 € *
Standard delivery time from the manufacturer is: On Request

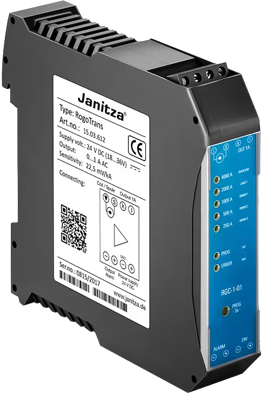

Current transducer, ROGO TRANS, Janitza
The measurement transducer for the Rogowski current transformer RogoTrans measures alternating currents and has a standardized output signal of 0...1 A. The measuring range extends up to 4000 A, the power supply is 24 V DC. The design of the measurement transducer is very compact and can be mounted on a DIN rail.
Features
- Standardized output signal 0 - 1 A
- For measuring alternating currents
- Measuring range up to 4000 A
- Compact design in plastic housing
Technical specifications
| Filter | Property | Value |
|---|---|---|
| measurement range | 18-36 V | |
| Length | 110 mm | |
| Product type | current transducer | |
| Height | 100 mm | |
| Width | 22.5 mm | |
| Weight | 200 g | |
| Version | via 6 LED (green) |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 90303100 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
