IPA40.5, 150A/5A | Janitza

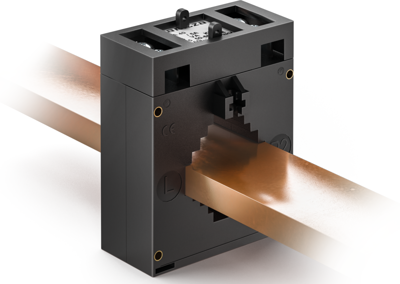

Plug-in current transformer, 150 A, for cables 30 mm, (W x H x D) 49 x 71 x 70 mm, IPA40.5, 150A/5A
Unit Price (€ / pc.)
151.13 € *
Standard delivery time from the manufacturer is: On Request
Bushing type current transformer, 09.05.236, Janitza
5 VA IPA40.5, round conductor max. 30mm, primary rail max. 10.5x40.5 mm, 15.5x30.5 mm, 20.5x25.5 mm, 25.5x20.5 mm, 30.5x15.5 mm, 40.5x10.5 mm
Features
- Rated frequency 50 - 60 Hz
- Insulation class E (other classes on request)
- Thermal rated short-time current Ith = 60 x IN/1s
- Rated surge current Idyn = 2.5 x Ith, but at least 100 kA for all clip-on current transformers
- Maximum voltage for equipment Um = 0.72 kV
- Overcurrent limiting factor FS5 resp. FS10
- Harmonic currents up to the 50th harmonic
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | plug-in current transformer | |
| Rated current | 150 A | |
| Cable diameter | 30 mm | |
| Width | 49 mm | |
| Height | 71 mm | |
| Depth | 70 mm | |
| Weight | 600 g |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85043129 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
