Deutsch

CT-SC-016-500-100 | Janitza

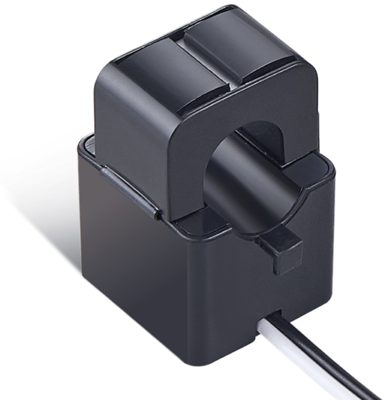

Current sensor, 100 A, for cables 16 mm, (W x H x D) 32 x 46 x 31.5 mm, CT-SC-016-500-100

Order No.: 30K4498
EAN: 4251861103348
MPN:
CT-SC-016-500-100
CT-SC-016-500-100/333mV, Kl.0.5
Series: CT-SC
Janitza
CT-SC-016-500-100 Janitza Power Converter
Image may differ
Print
Key Specification:
Version low power current transformer
Rated current 100 A
Cable diameter 16 mm
Width 32 mm
Height 46 mm
Show variants: 10
Download Datasheet Technical specifications
Unit Price (€ / pc.)
26.775 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
26.78 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
26.775 €
Description
Technical specifications
Download
Logistics
Compliance
Variations

Low-power transformer , CT-SC-016-500-100, Janitza

This CT-SC-016-500-100 is a low-power current transformer used to measure currents of up to several kA.

Features

  • Compact design
  • Transformer disconnect terminals can be omitted during installation
  • Higher levels of occupational health and safety during installation
  • Accuracy 0.5%
  • Connection cable up to 5 m
Technical specifications
Version low power current transformer
Rated current 100 A
Cable diameter 16 mm
Width 32 mm
Height 46 mm
Depth 31.5 mm
Weight 150 g
Articles of same specification 0
Logistics
Customs tariff number 85043129
Country of origin CN
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
