ASRD 14 3X125/5A 2,5 VA KL.0,5 | Janitza

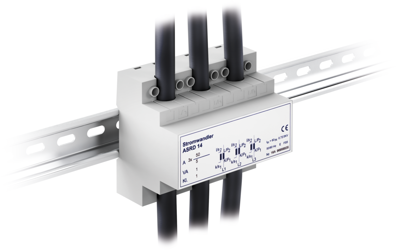

Three phase current transformer, 125 A, for cables 13 mm, (W x H x D) 105 x 90 x 54 mm, ASRD 14 3X125/5A 2,5 VA KL.0,5
Unit Price (€ / pc.)
198.73 € *
Standard delivery time from the manufacturer is: On Request
Three-phase current transformer, 1503406, Janitza
Core type: closed, protection class: E (max 120°), Ith: 60 x In/1s, ambient temp.: -5...+40°C, max. primary line dia.: Ø 13.5 mm
Features
- Primary current 100 A
- Secondary current 5 A
- Conductor bushing Ø 13 mm per phase
- For connection to current measuring systems with 5 A input
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | three phase current transformer | |
| Rated current | 125 A | |
| Cable diameter | 13 mm | |
| Width | 105 mm | |
| Height | 90 mm | |
| Depth | 54 mm | |
| Weight | 500 g |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85043129 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
