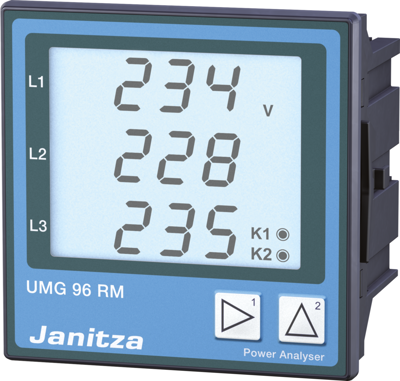

UMG 96RM-P (90V..277V) | Janitza
Energy meter, RS485, USB, D-Sub-9 connector, (L x W x H) 96 x 79 x 78 mm, UMG 96RM-P (90V..277V)
NCNR (non cancelable / non returnable)
Network analyser, 52.22.064, Janitza
Network analyser UMG 96RM-P with Profibus, supply voltage 90V...277V (50/60Hz), 90V...250V DC, 300V CATIII, voltage measurement, measurement category 300V CATIII, 3 voltage measurement inputs (L-N: 20V-300V, L-L: 34V- 520V, 45Hz-65Hz), 3+1 current measurement inputs 0. ..5A, response current 5mA, Measurement in three-phase 4-wire systems with grounded neutral up to max. 277V / 480V, Measurement in unearthed three-phase 3-wire systems up to max. 480V, Measurement in single-phase 3-wire systems up to max. 220V-440V, Measurement in single-phase 2-wire systems up to max. 220V, 2+4 digital outputs, 4 digital inputs, Clock and data memory (5MB / 256 MB Flash), Interfaces: RS485, USB, Sub D 9 pole, Protocol: Profibus
Features
- Determination of energy costs
- Breakdown and allocation of energy consumption
- Continuous increase in energy effi ciency
- Cost reduction
- Multifunctional power analyzers of the UMG 96RM series are an important component of energy management systems
| Filter | Property | Value |
|---|---|---|
| Product type | energy meter | |
| Version | RS485, USB, D-Sub-9 connector | |
| Length | 96 mm | |
| Width | 79 mm | |
| Height | 78 mm | |
| Weight | 300 g |
| Property | Value |
|---|---|
| Customs tariff number | 90303200 |
| Country of origin | DE |
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
