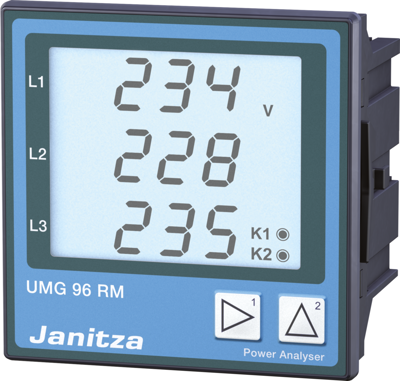

UMG 96RM-M (24V..90V) | Janitza
Energy meter, M bus, (L x W x H) 96 x 96 x 48 mm, UMG 96RM-M (24V..90V)
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
362.9857 € *
Available in 5 Days: 100 pcs. - if ordered today
Network analyser, 52.22.073, Janitza
Network analyser UMG 96RM-M with M-Bus , supply voltage 24V...90V (50/60Hz), 24V...90V DC, 150V CATIII, voltage measurement, measurement category 300V CATIII, 3 voltage measurement inputs (L-N: 20V-300V, L-L: 34V- 520V, 45Hz-65Hz), 3 current measurement inputs 0... 5A, response current 5mA, measurement in three-phase 4-wire systems with grounded neutral conductor up to max. 277V / 480V, measurement in unearthed three-phase 3-wire systems up to max. 480V, measurement in single-phase 3-wire systems up to max. 220V-440V, measurement in single-phase 2-wire systems up to max. 220V, 2 digital / pulse outputs, interface: M-Bus
Features
- Determination of energy costs
- Breakdown and allocation of energy consumption
- Continuous increase in energy effi ciency
- Cost reduction
- Multifunctional power analyzers of the UMG 96RM series are an important component of energy management systems
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | energy meter | |
| Version | M bus | |
| Length | 96 mm | |
| Width | 96 mm | |
| Height | 48 mm | |
| Weight | 300 g |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 90303200 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
