UMG 96RM-EL (24V..90V) | Janitza

Energy meter, RS485, Ethernet, (L x W x H) 96 x 96 x 48 mm, UMG 96RM-EL (24V..90V)

Order No.: 30K4235
EAN: 4251861100187
MPN:
UMG 96RM-EL (24V..90V)
52.22.072

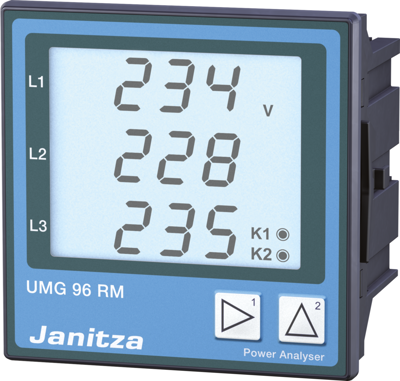

UMG 96RM-EL (24V..90V) Janitza Energy Measurement
Image may differ
This item is no longer available.
As an alternative, we recommend the following item:
Energy analyzer, Janitza UMG 96-PA, 24-90V
Energy analyzer, Janitza UMG 96-PA, 24-90V
Order No.: 30K4475
Manufacturer: Janitza
per pc. 531.9300 € *

Network analyser, 52.22.072, Janitza

Network analyser UMG 96RM-EL with Ethernet, Supply voltage 24V...90V (50/60Hz), 24V...90V DC, 150V CATIII, Voltage measurement, Measurement category 300V CATIII, 3 voltage measurement inputs (L-N: 20V-300V, L-L: 34V- 520V, 45Hz-65Hz), 3 current measurement inputs 0...5A, Response current 5mA, Measurement in three-phase 4-wire systems with grounded neutral conductor up to max. 277V / 480V, Measurement in unearthed three-phase 3-wire systems up to max. 480V, Measurement in earthed single-phase 3-wire systems up to max. 220V-440V, Measurement in earthed single-phase 2-wire systems up to max. 220V, Interface: Ethernet, Protocol: TCP/IP

Features

  • Determination of energy costs
  • Breakdown and allocation of energy consumption
  • Continuous increase in energy effi ciency
  • Cost reduction
  • Multifunctional power analyzers of the UMG 96RM series are an important component of energy management systems
Technical specifications
Filter Property Value
Weight 300 g
Width 96 mm
Height 48 mm
Length 96 mm
Product type energy meter
Version RS485, Ethernet
Logistics
Property Value
Country of origin DE
Customs tariff number 90303200
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
Replacement
