UMG 96RM-CBM (90V..277V) | Janitza

Energy meter, RS485, USB, (L x W x H) 96 x 96 x 78 mm, UMG 96RM-CBM (90V..277V)

Order No.: 30K4230
EAN: 4251861100118
MPN:
UMG 96RM-CBM (90V..277V)
52.22.066
Series: UMG 96

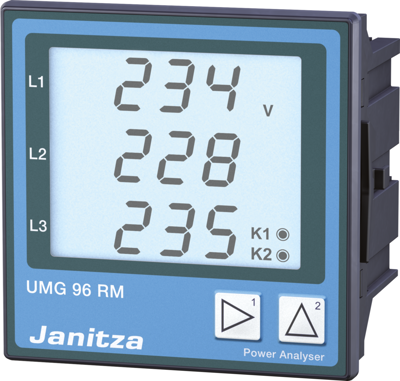

UMG 96RM-CBM (90V..277V) Janitza Energy Measurement
Image may differ
Unit Price (€ / pc.)
567.63 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
567.63 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
567.63 €

Network analyser, 52.22.066, Janitza

Network analyser UMG 96RM-CBM, Supply voltage 90V...277V (50/60Hz), 90V...250V DC, 300V CATIII, Voltage measurement, Measurement category 300V CATIII, 3 voltage measurement inputs (L-N: 20V-300V, L-L: 34V- 520V, 45Hz-65Hz), 3+1 current measurement inputs 0. ..5A, response current 5mA, Measurement in three-phase 4-wire systems with grounded neutral up to max. 277V / 480V, Measurement in unearthed three-phase-3 conductor systems up to max. 480V, Measurement in single-phase-3 conductor systems up to max. 220V-440V, Measurement in single-phase-2 conductor systems up to max. 220V, 2+4 digital outputs, 4 digital inputs, Clock and data memory (5MB / 256 MB Flash), Interfaces: RS485, USB, protocol: Modbus RTU

Features

  • Determination of energy costs
  • Breakdown and allocation of energy consumption
  • Continuous increase in energy effi ciency
  • Cost reduction
  • Multifunctional power analyzers of the UMG 96RM series are an important component of energy management systems
Technical specifications
Height 78 mm
Product type energy meter
Version RS485, USB
Width 96 mm
Length 96 mm
Weight 300 g
Logistics
Customs tariff number 90303200
Country of origin DE
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
