UMG 604EP-PRO 230V (UL) | Janitza

Energy meter, Modbus RTU, Modbus Gateway, Modbus RTU over Ethernet, SNMP, Modbus TCP/IP, (L x W x H) 107.5 x 90 x 82 mm, UMG 604EP-PRO 230V (UL)

Order No.: 30K4177
EAN: 4251861102372
MPN:
UMG 604EP-PRO 230V (UL)
52.16.201
Series: UMG 604

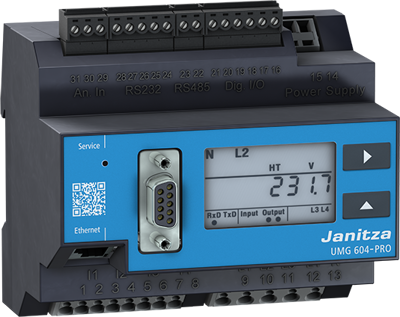

UMG 604EP-PRO 230V (UL) Janitza Energy Measurement
Image may differ
Unit Price (€ / pc.)
1,318.52 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
1,318.52 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
1,318.52 €

High Power Power Quality Analyzer, 5216201, Janitza

Power Analyser (UL), supply voltage: 95...240V (45-65Hz) 135...340V DC , measuring category: 300V CATIII , 4 voltage measuring inputs, 4 current measuring inputs , measuring range: L - N: 10 -300V L - L: 17 - 520V 45 - 65Hz , current transformer:.../1,.../5A , 2 digital inputs, 2 digital outputs , 1 temperature measuring input , additional memory: 128MB Flash , interfaces: RS232, RS485 , Interface: Profibus DP V0, Interface: Ethernet 10/100 BaseTX, Incl.Web-Server as well as the following APP`s:, APP Measured Value Monitor: Graphical display of online & historical measured values , APP IEC 61000-2-4 Watchdog Light PRO: Monitoring of power quality limits according to IEC 61000-2-4, APP Push Service PRO: Transfer of measured data to cloud based software solutions

Technical specifications
Filter Property Value
Height 82 mm
Version Modbus RTU, Modbus Gateway, Modbus RTU over Ethernet, SNMP, Modbus TCP/IP
Weight 350 g
Width 90 mm
Length 107.5 mm
Product type energy meter
Logistics
Property Value
Customs tariff number 90303200
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
