UMG 511 100V (UL) | Janitza
Energy meter, modbus RTU, (L x W x H) 144 x 144 x 81 mm, UMG 511 100V (UL)
Unit Price (€ / pc.)
3,659.25 € *
Standard delivery time from the manufacturer is: On Request

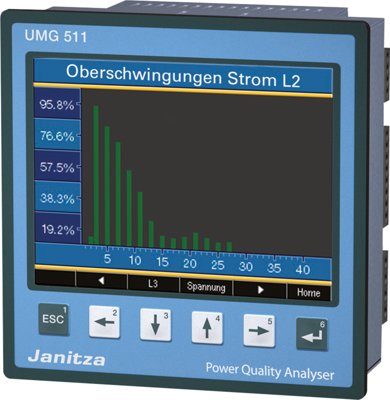

Power Quality Analyzer, 5219012, Janitza
Power Quality Analyser, UMG 511 (UL), Supply voltage: 44 - 130V (50 - 60Hz), 48 - 180V DC , Installation overvoltage category II, 4 voltage measurement inputs, , Measurement category: 600V CATIII , Measurement in three-phase 4-wire systems up to 347V/600V, , Measurement in three-phase 3-wire systems up to 600V, , Measurement range: L - N: 10 - 600V, 15 - 440Hz , Measurement range: L - L: 18 - 1000V, 15 - 440Hz , 4 current measurement inputs for current transformers. ../1 or.../5A , Measuring range: 0,001...8,5Arms, , 8 digital inputs, 5 digital outputs , Data memory: 256MB Flash, , Interfaces: RS485, Profibus DP V0, Ethernet 10/100 BaseTX
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Weight | 1080 g | |
| Width | 144 mm | |
| Height | 81 mm | |
| Length | 144 mm | |
| Product type | energy meter | |
| Version | modbus RTU |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 90303200 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
