UMG 509-PRO 100V-AC/24V-DC | Janitza

Energy meter, CP/IP, EMAIL (SMTP), DHCP client (BootP), Modbus/TCP, Modbus RTU over Ethernet, FTP, ICMP (Ping), NTP, TFTP, SNMP, (L x W x H) 144 x 144 x 75 mm, UMG 509-PRO 100V-AC/24V-DC

Order No.: 30K4186
EAN: 4251861100217
MPN:
UMG 509-PRO 100V-AC/24V-DC
52.26.003
Series: UMG 509

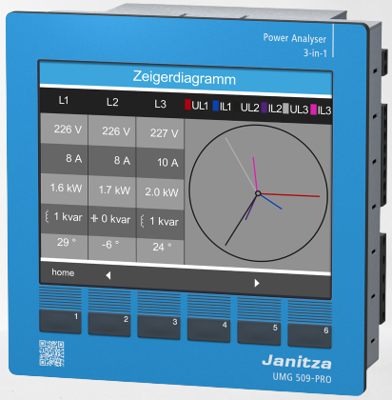

UMG 509-PRO 100V-AC/24V-DC Janitza Energy Measurement
Image may differ
Unit Price (€ / pc.)
1,474.41 € *
Available in 5 Days: 25 pcs. - if ordered today
Total Price:
1,474.41 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
1,474.41 €

Multifunctional network analyzer, 5226003, Janitza

Power Analyser with RCM, Device dimension (LxWxH): 144x144x75, with battery and clock , Supply voltage: 48 - 110V (50/60Hz) 24 - 150V DC, Installation category: 300V CATIII, 4 voltage measurement inputs, Measurement category: 600V CATIII, Measurement in three-phase 4-wire systems up to 417V/720V, Measurement in three-phase 3-wire systems up to 600V, 4 current measurement inputs for current transformers. ../1 or.../5A, Current measuring range: 0.001...7A rms, 2 digital inputs, 2 digital outputs, 1 temperature input, 2 RCM inputs, Data memory: 256MB Flash, Interfaces: Ethernet TCP / IP 10/100 BaseTX RS485/ Modbus RTU,Profibus DP/V0, Incl.Web-Server as well as the following APP`s:, APP Measured Value Monitor: Graphical display of online & historical measured values , APP IEC 61000-2-4 Watchdog Light PRO: Monitoring of power quality limits according to IEC 61000-2-4, APP Push Service PRO: Transfer of measured data to cloud based software solutions

Technical specifications
Filter Property Value
Height 75 mm
Version CP/IP, EMAIL (SMTP), DHCP client (BootP), Modbus/TCP, Modbus RTU over Ethernet, FTP, ICMP (Ping), NTP, TFTP, SNMP
Weight 1080 g
Width 144 mm
Length 144 mm
Product type energy meter
Logistics
Property Value
Customs tariff number 90303200
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
