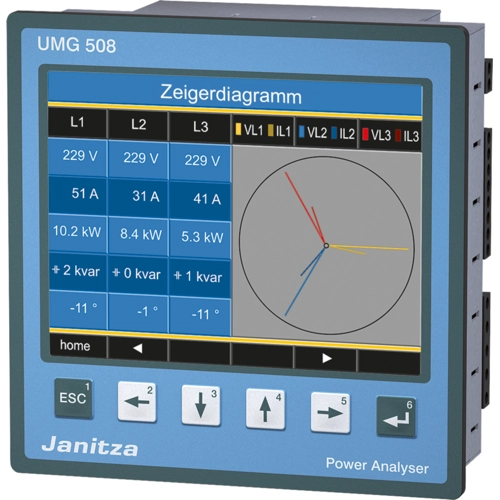

UMG 508 100V (UL) | Janitza
Energy meter, Modbus RTU, Profibus DP V0, Modbus master, (L x W x H) 144 x 144 x 81 mm, UMG 508 100V (UL)
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
1,516.06 € *
Standard delivery time from the manufacturer is: On Request
Network analyser, 52.21.012, Janitza
Network analyser, UMG 508 (UL), Supply voltage: 44 - 130V (45-65Hz), 48 - 180V DC , Installation overvoltage category II, 4 voltage measurement inputs, , Measurement category: 600V CATIII , Measurement in three-phase 4-wire systems up to 347V/600V, , Measurement in three-phase 3-wire systems up to 600V, , Measurement range: L - N: 10 - 600V, 40 - 70Hz , Measurement range: L - L: 18 - 1000V, 40 - 70Hz , 4 current measurement inputs for current transformers. ../1 or.../5A , Measuring range: 0.001...8.5Arms, , 8 digital inputs, 5 digital outputs, , Data memory: 256MB Flash, , Interfaces: RS485, Profibus DP V0, Ethernet 10/100 BaseTX
Features
- Determination of energy costs
- Breakdown and allocation of energy consumption
- Continuous increase in energy effi ciency
- Cost reduction
- Multifunctional power analyzers of the UMG 96RM series are an important component of energy management systems
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | energy meter | |
| Version | Modbus RTU, Profibus DP V0, Modbus master | |
| Length | 144 mm | |
| Width | 144 mm | |
| Height | 81 mm | |
| Weight | 1080 g |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 90303200 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
