PRODATA® | Janitza
GATEWAY ProData®
Product by Janitza at Bürklin Elektronik

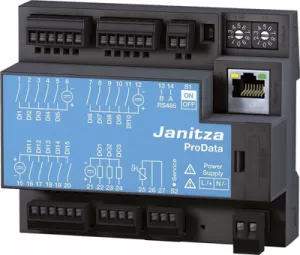

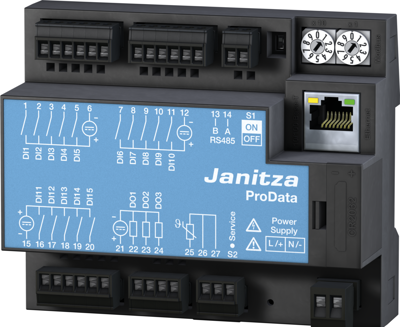

Data logger, 5224011, Janitza
data logger, - auxiliary voltage 20V - 250V AC (45... 65Hz) or 20V - 300V DC, - 1 RS 485 interface (Modbus RTU, Slave, up to 115 kbps), - 1 Ethernet interface (Modbus TCP, NTP ...), - 15 digital / pulse inputs (24VDC), - 3 digital outputs (24V/50mA), switchable via Modbus, weekly timer, - 1 temperature measurement input (PT100/PT1000)3-wire, - 32 MB flash memory, - clock and battery function, - 64 weekly timers, - limit and temperature monitoring, - tariff switching, - Modbus Ethernet gateway functionality, - storage of minimum and maximum values (with time stamp), - configurable records, readable via RS485 and Ethernet, - mounting on top hat rail (35mm), - dimensions: 107.5 x 90 x 46 mm (6 TE), Replaces Art. No. 5224001
| Country of origin | DE |
| Customs tariff number | 90328900 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
